25 ton

H-Type Workshop Presses

Our H-Type double-column workshop press is a reliable and professional hydraulic press with a strong and steady frame and flexible work hight. All STENHOJ models are designed with generous workspace and a 400mm stroke double-acting cylinder. Customise your STENHOJ press to your specifications in our configurator below. Dispatch within 24 hours.

Choose from

Starts from

3,750 excl. vat

Unique Features

  • Made in Denmark with high quality European components
  • Stable fully welded frame designed for extra high rigidity
  • Lifting unit for easy adjustment of daylight
  • 400 mm piston stroke & stop in all positions
  • Double-acting and laterally moveable cylinder (left-right)
  • Strongly built and easy adjustable press bed
  • Flexible and easily adjustable daylight (300-900 mm)
  • Replaceable nose cap
  • Hard-chromed piston rod supported by long stable guiding
  • single-hand operation for variable pressing speed 0-100%
  • Energy-efficient IE3 motors
  • Operated with PLC integrated safety-stop and manometer display

Industries

Application Ranges

  • Cold Pressing
  • Hot Pressing
  • Deep Drawing
  • Stamping
  • Bending
  • Assembly
  • Embossing
  • Grinding

Specifications

MODEL     WP-H 25 WP-H 40 WP-H 60 WP-H 100 WP-H 200
Pressing force, max.   [kN] 250 400 600 1000 2000
Stroke   [mm] 400 400 400 400 400
Daylight, min. A [mm] 300 300 300 300 300
Daylight, max. B [mm] 900 900 900 900 900
Table width between verticals C [mm] 740 850 1010 1080 1150
Total Width D [mm] 1215 1320 1560 1730 1920
Side clearance E [mm] 160 245 290 360 460
Max floor space F [mm] 670 650 760 800 1040
Overall height G [mm] 2050 2150 2275 2500 2500
Bed height, max. H [mm] 1010 1045 1145 1245 1245
Press bed adjustment I [mm] 4x150 4x150 4x150 4x150 4x150
Moveable cylinder J [mm] 250* 275* 330* 340* 280*
Weight (Approx)   [kg] 300 500 800 1300 2100
Motor pump unit
Pressing speed   [mm/s] 10/10 9/9 10/5 8/3 10/2,5
Return speed   [mm/s] 16 12 14 11 14
Return load, max.   [kN] 30 30 30 30 200
Motor power 3x400V, 50Hz   [kW] 4 4 4 4 5.5
Oil reserve capacity   [L] 25 25 25 25 80
Workshop Presse Frame H Dimensions Stenhoj Hydraulik

Specifications

General Specifications & Dimensions
Motor Pump Unit
Cylinder
Nose Cap

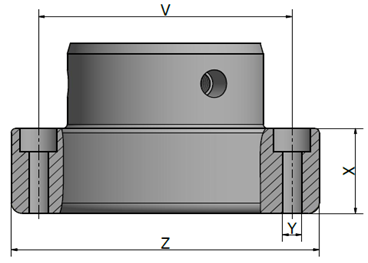

Press Flange

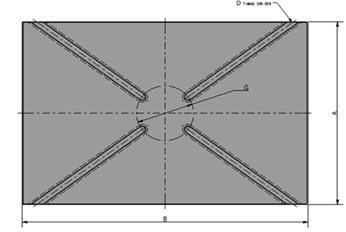

Press Bed

Options

PLC Operation

Siemens ktp700 key/touch panel operation with piston return and timer stop function , ideal for mounting, fitting and assembly work.

PLC Operation

Two Hand Operation

Simultaneous operation used to safeguard the hands of the operator. The press will not start until both hands are confirmed to be in a safe position.

Two Hand Operation

Electric Foot Operation

Stepless pressing speed 0-100%

Electric Foot Operation

Shielding

Transparent 4mm polycarbonate panels and teflon-coated low-friction rails for increased safety under pressing

Shielding

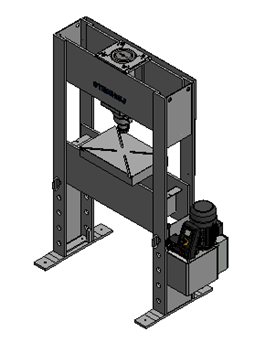

Press Bed Kit

Solid press bed made from S355 quality steel with high stress resistance, The press bed is easy adjustable with pins and has machined surfaces for precision work and T-tracks for optimal tool fitting. Includes lifting unit for easy adjustment of daylight.

Press Bed Kit

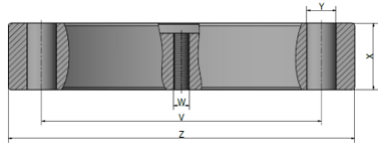

Press Flange

Flanged piston rod end used for larger press surfaces or for mounting tools.

Press Flange

Straightening Blocks / V-blocks

Solid S355 quality steel, machined surfaces for great parallelism and fall protection, V-shaped back for pressing round items.

We recommend these tools

Press Pin Set

Press Pin Set

€350

For workshop press 25t, 40t, 60t, 100t
The set consists of 8 different sizes of pressing pins, diameter 12-14-16-18-20-22-25-30 mm. Used for pressing bearings and bushings on and off. Includes an adapter for mounting the pins to the cylinder head and a bracket holder to hang the pins on the press frame side.

Tool Plate Stenhoj Hydraulik

Tool plate

€95

For Workshop Press 25t. 40t, 60t, 100t.
Press plate for pin press support with kidney-shaped hole. Mostly used for pressing out bearings.

Press Brake Tool

Press Brake Tool

€2725

Suitable for H-Frame presses from 40-200t.

Maximum tool width: 835 mm. The lower of the tool has 4 pcs. 85 deg. dies, 16, 22, 35 og 50 mm. Can be used for sheet thicknesses from 0,5 til 6 mm. Maximum press force: 45 ton.

Broaching Fixture

Broaching Fixture

€645

For easy handling of broach when making keyways on pulleys, clutches and other items.

Tube bending tools

Tube bending tools

€650

Bending tool used for pipe/tube bending with 6 different sizes of matrixes: 3/8" 1/2" 3/4" 1" 11/4" 11/2". Includes 2 support blocks.

Hydraulic Oil - 20L

Hydraulic Oil - 20L

€70

STENHOJ high quality hydraulic oil. 25-100t WP -> 1 can. 200 Ton presses -> 4 cans.



Order STENHOJ hydraulic oil together with your standard workshop press and receive one-year extended warranty (3 years) *



* wear and tear parts excluded
